Portable Weather Station
In order to overcome the shortcomings of traditional weather stations that are complex and difficult to move, our company independently developed this portable weather station. It effectively integrates ultrasonic wind speed and direction with temperature, humidity, noise, atmospheric pressure, PM2.5&PM10(or CO2), rainfall(or light) and other sensors. It can monitor multiple meteorological elements in real time. With a color touch screen, you can manually set parameters and easily read values.
- Model: RS-HSQXZ-USB-1-*-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price:$485
About - Portable Weather Station
RS-HSQXZ-USB-1-*-EX is a multifunctional handheld weather station. Lightweight, easy to move, and durable are its main advantages. The integrated design has no moving parts and does not require maintenance or on-site calibration. It can simultaneously monitor real-time data such as wind speed, wind direction, temperature, humidity, air pressure, PM2.5, PM10, noise, carbon dioxide, and rainfall.
Features
- 2.4-inch LCD touch screen, real-time monitoring data, comprehensive content.
- Support users to freely select measurement elements to meet different environments.
- Powered by large-capacity rechargeable battery, it can work continuously for 36 hours when fully charged.
- Optional mounting bracket, long-term fixed detection, simple and convenient operation.
- Large-capacity data storage, up to 260,000 data can be stored, and data can be exported using Type-C cable.
- We are an OEM and can not only provide you with a free data platform, but also provide you with customized services for software and logo.
Description
This portable weather station has several built-in sensors and uses the time difference of ultrasonic waves in the air to measure wind speed and direction. It comes with a 2.4-inch touch screen for easy reading and manual operation. There is a specially designed handle at the bottom for users to hold with one hand. It has dedicated APP provided by our company can be used to configure the device parameters on the mobile phone, which is particularly suitable for field inspections and on-site debugging.
Description
| Power supply | Three 18650 rechargeable batteries | |||
| Interface | Type-C to USB cable | |||
| Storage capacity | 260,000 records | |||
| Factors | Range | Accuracy | Stability | Response time |
| Wind speed | 0~40m/s | ±0.5+2%FS(60%RH,25℃) | — | ≤3.5s |
| Wind direction | 0~359° | ±3°(60%RH,25℃) | — | ≤3.5s |
| Temperature | -40℃~+80℃ | ±0.5℃(25℃) | ≤0.1℃/y | ≤25s(1m/s wind speed²) |
| Humidity | 0%RH~99%RH | ±3%RH(60%RH,25℃) | ≤1%/y | ≤8s(1m/s wind speed²) |
| Air pressure | 0-120kPa | ±0.15kPa@25℃ 101kPa | -0.1kPa/y | ≤2s |
| Noise | 30dB~120dB | ±0.5dB(94dB@1kHz) | ≤3dB/y | ≤3s |
| PM2.5/PM10 | 0-1000μg/m³ | ±3%FS(@100μg/m³,25℃,50%RH) | ≤1%/y | ≤90s |
| CO2 | 0-5000ppm | ±(50ppm+3%F·S)(25℃) | ≤1%/y | ≤90s |
| Light | 0~200,000 Lux | ±7%(25℃) | ≤5%/y | ≤3s |
| Typical accuracy | Max. instantaneous | Sense diameter | Resolution | |
| Rainfall | ±5% | 24mm/min | 6cm | 0.1mm |
Installation

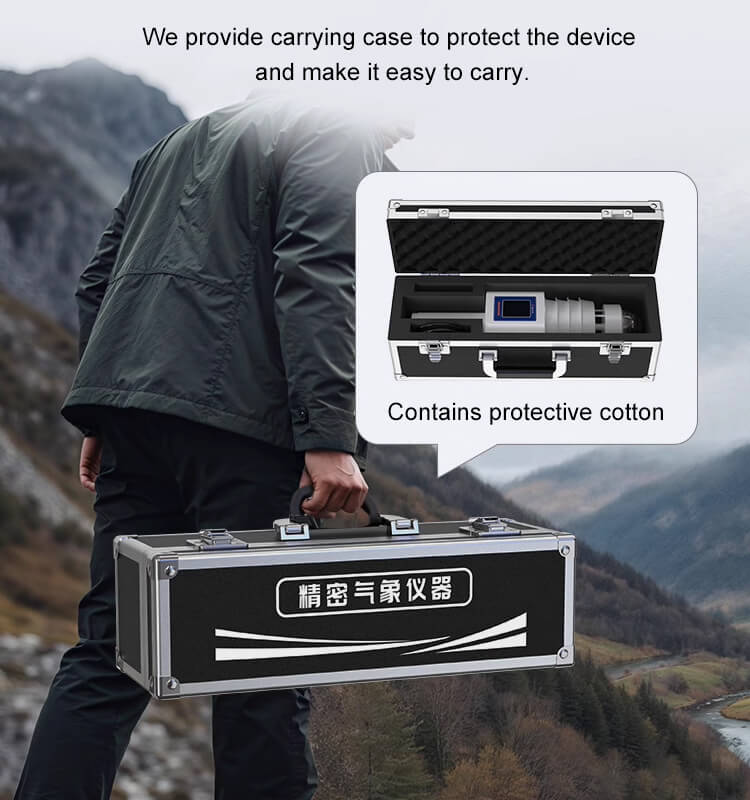

The portable weather station must be placed in a special suitcase during transportation. After opening the suitcase, do not discard any packaging materials, as they can be reused during transportation. After arriving at the destination, take the device out of the suitcase, turn on the power switch and start detecting data. If you purchased a tripod at the same time as the portable weather station, you can also install it on the tripod for use.

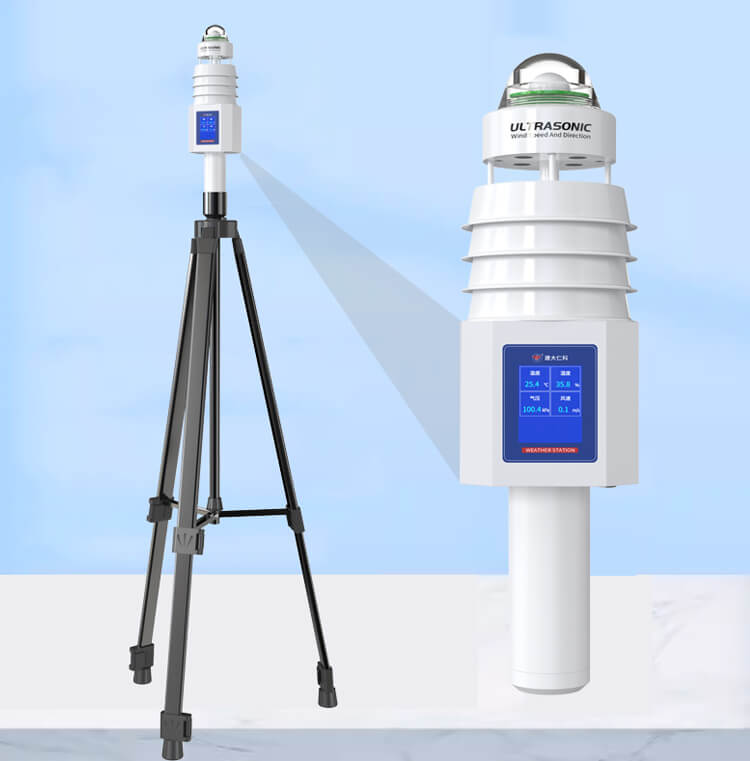

1. Assemble the tripod
Take out the tripod and pull up the three locks in sequence. Pull out the pole and lock it, open the tripod (left to loosen, right to tighten) and fix it.
2. Install the portable weather station
Take out the handheld weather station, align it with the upper connection port of the tripod, and pick up the device and install it on the tripod.
3. Power-on test
Press the power on the bottom of the weather device to start the device. Check the device screen display or use the Bluetooth connection software to view it.
Types
FAQs - Portable Weather Station
What is the package of the portable weather station?
Packing list:
Portable weather station * 1
Portable tripod stand (add $58) * 1
Portable suitcase * 1
Data cable * 1
Certificate of conformity
warranty card
What should I pay attention to when clicking the screen?
When the finger touches the screen to switch operations, if the frequency is too fast or the screen is touched frequently, the display will be sluggish or stuck, which is a normal phenomenon. When the finger touches the screen, please do not use hard objects such as nails to operate to avoid unresponsive operation or damage to the screen.
How long is the interval for saving data?
The interval for saving data in the portable weather station can be set, the setting range is 20s~65535s, and the default is 60s.
How long is the screen off time?
The screen off time of our device can be set, the setting range is 15s~65535s, and the default is 60s.
How to clear the saved data?
Click Clear stored data to clear the total data currently stored in the host. Click the Clear accumulated rainfall button to clear the accumulated rainfall data to facilitate recalculation of rainfall data the next time it is used.
What is the material of the handheld weather station?
Our equipment is ABS, galvanized iron and aluminum from top to bottom. It not only ensures light weight, but also effectively protects the built-in sensor.

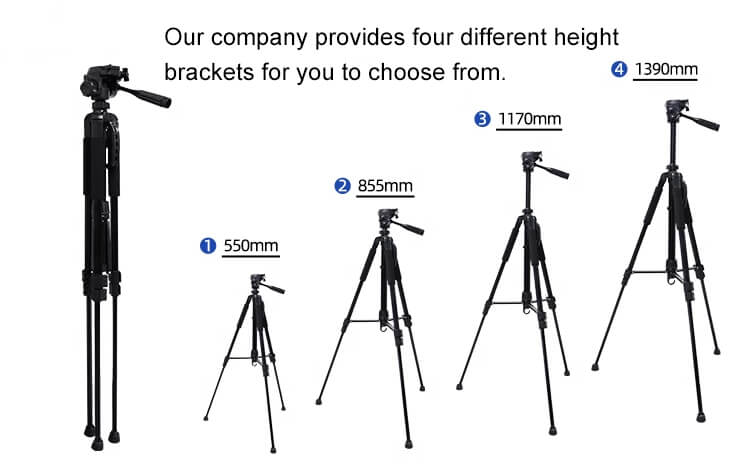

What size bracket should I purchase?
We offer tripods in various sizes, which you can choose according to your needs.
What types of weather stations do we have?
We offer professional fixed weather station, ultrasonic weather station, small ultrasonic weather station, integrated weather station and handheld weather station.
What are the applications of the handheld weather station?
This handheld weather station has a wide range of application scenarios. In the field of outdoor adventures and tourism, it can provide explorers and tourists with real-time weather information, helping them choose the best route and time to ensure the safety and smoothness of the journey. In addition, it is also the best tool in the fields of environmental monitoring, agricultural production and campus education.
