Duct CO2 Sensor
This duct mounted CO2 sensor uses NDIR non-dispersive infrared technology for CO2 concentration measurement. In addition to the measurement channel, our product also adds a reference channel, and the measurement data is more accurate, which is better than most co2 sensors on the market.It is widely used in the monitoring of carbon dioxide concentration in the return air duct and the control of outdoor air intake.
- Model: RS-CO2-*-2FL-*
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $48~$58.5
Overview - Duct mounted CO2 sensor
Our duct mounted CO2 sensors are designed to measure carbon dioxide levels in extraction ductwork. Various signal outputs, such as: RS485, 4-20mA, 0-5V, and 0-10V. The RS485 duct CO2 sensor has an automatic calibration function. Optional LCD display for easy access to values even in dim light. The internal anti-interference circuit is designed, which can withstand various strong electromagnetic interference such as on-site frequency converters. This duct mounted CO2 sensor can be used to measure CO2 levels in the ducts of ventilation and air conditioning systems. Improve room comfort and optimize energy consumption by controlling ventilation.
Duct CO2 sensor features
1. This duct mounted CO2 sensor probe is stainless steel, which is corrosion-resistant and greatly improves the service life. The sensor housing is made of high-strength waterproof material and can be used in outdoor environments.
2. The measurement range is 0-5000ppm, other ranges can be customized.
3. With automatic calibration function. After long-term use, take the rs485 duct mounted CO2 sensor to a clean outdoor environment and wait for a while to complete the automatic calibration.
4. Comes with temperature compensation, less affected by temperature.
5. Built-in high-precision non-dispersive infrared sensor elements, accurate measurement and sensitive reflection.

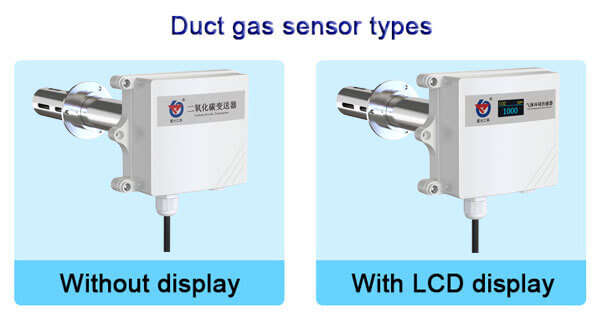

6. 10-30V wide voltage power supply, there are two types with display and without display.
7. Duct co2 sensors are widely used in building automation systems to control ventilation equipment in industrial and commercial applications.
We provide CO2 sensors with OLED displays for customers who need on-site reading. Ability to view real-time data. It can also be clearly displayed at night.
| Power supply | 10~30VDC |
|---|---|
| Range | 0~5000ppm |
| Accuracy | ±(50ppm+ 3%F·S) (25℃)@400-5000ppm |
| Operating temperature | -10℃~+50℃, 0%RH~95%RH (non-condensing) |
| Stability | <2%F·S |
| Nonlinear | <1%F·S |
| Data update time | 2s |
| Output signal | RS485, 4~20mA, 0~5V, 0~10V |
Renke CO2 Sensors
We are a professional carbon dioxide sensor manufacturer with 15 years of R&D and sales experience. For different customer needs and monitoring environments, we have produced many carbon dioxide sensors and detectors. Below are our current best-selling co2 sensor types. In addition, we have professional R&D capabilities and can provide you with hardware and software customization services. You can contact us. Email us your detailed requirements and monitoring environment, and we will provide you with the best solution.

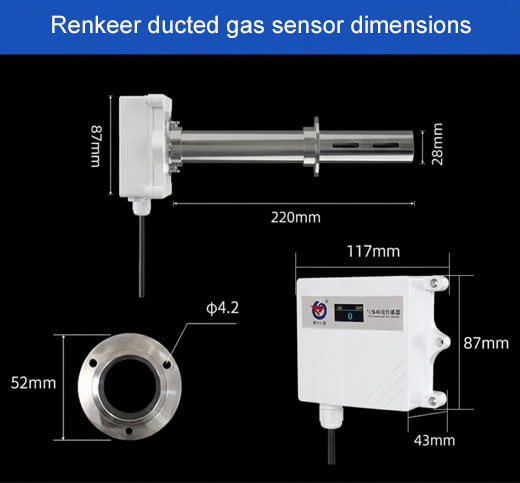

Duct Gas Sensor Types
In addition to duct mounted CO2 sensor, we have the following other types of duct gas sensors. If you are interested, please send us the model number and we will provide you with detailed instructions.
01 Duct NH3 sensor
Model: RS-NH3-2FL-*
Range: 0~50ppm or 0~100ppm
Accuracy: 0~50ppm is ±8%, 0~100ppm is ±8%
Resolution: 0~50ppm is 0.1ppm, 0~100ppm is 1ppm
02 Duct O3 sensor
Model: RS-O3-*-2FL-*
Range: 0~10ppm or 0~100ppm
Accuracy: 0~10ppm is ±6%FS, 0~100ppm is ±6%FS
Resolution: 0~10ppm is 0.01ppm, 0~100ppm is 1ppm
03 Duct SO2 sensor
Model: RS-SO2-*-2FL-*
Range: 0~20ppm, 0~2000ppm
Accuracy: ±5%FS or ±10%
Resolution: 20ppm is 0.1ppm, 2000ppm is 1ppm
04 Duct O2 sensor
Model: RS-O2-*-2FL-*
Range: 0~25%VOL or 0~30%VOL
Accuracy: ±2%FS
Resolution: 0.1%VOL
05 Duct CH4 sensor
Model: RS-CH4-*-2FL-*
Range: 0~100%LEL
Accuracy: ±5%FS
Resolution: 1%LEL
06 Duct H2S sensor
Model: RS-H2S-*-2FL-*
Range: 0~100ppm
Accuracy: ±2ppm or ±10%
Resolution: 1ppm
07 Duct CH2O sensor
Model: RS-CH2O-*-2FL-*
Range: 0~5ppm
Accuracy: ±5%FS
Resolution: 0.01ppm
08 Duct CO sensor
Model:RS-CO-*-2FL-*
Range: 0-1000ppm or 0-2000ppm
Accuracy: ±5ppm or ±10%
Resolution: 1ppm
09 Duct H2 sensor
Model: RS-H2-*-2FL-*
Range: 0~1000ppm or 0~40000ppm
Accuracy: ±5%FS
Resolution: 1ppm
10 Duct NO2 sensor
Model: RS-NO2-*-2FL-*
Range: 0~20ppm, 0~2000ppm
Accuracy: ±5%FS
Resolution: 20ppm is 0.1ppm, 2000ppm is 1ppm
