Multi Layer Soil Sensor
This multi-layer soil sensor can continuously measure soil conductivity, moisture content, and temperature at different depths for a long time. The data is transmitted to the free cloud platform via RS485 signal for remote real-time monitoring. The whole shell is made of stainless steel, which is effectively waterproof and corrosion-resistant. Message us for detailed manual.
- Model: RS-*-N01-TR-5-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $76~$147
About - Multi Layer Soil Sensor
Features

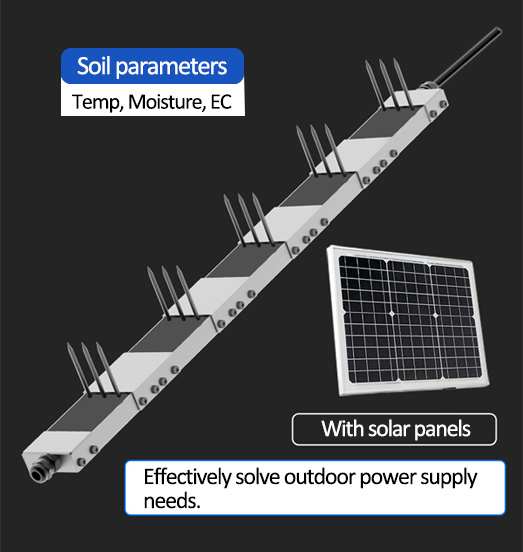

Multi-layer soil sensor is a device developed by our company that can measure soil parameters in different depths. It can dynamically observe the soil electrical conductivity, moisture and temperature status at different levels. This soil sensor can detect the minimum 3 layers, and the highest 5 layers soil EC, temperature and humidity status. The soil sensor adopts standard Modbus-RTU485 communication and supports secondary development.
- The shell is made of stainless steel, black flame-retardant epoxy resin is completely sealed, acid and alkali resistant, and can be buried in the soil for long-term dynamic testing.
- It is suitable for soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouses, gardens, grassland pastures, plant cultivation, sewage treatment, precision agriculture and other occasions.
Advantages
- Multi-layer dynamic monitoring: Capable of continuous and dynamic observation of soil conductivity, moisture content, and temperature conditions at different depths.
- High protection performance: Fully sealed design with excellent resistance to acid and alkali corrosion, suitable for long-term burial in soil or direct immersion in water.
- Durable electrode material: Specially treated alloy electrodes with strong impact resistance, not easily damaged during long-term use.
- High accuracy and reliability: Fast response, high precision, and strong interchangeability. The probe’s insertion design ensures accurate measurement and stable performance.
Installation
The multi-layer soil sensor uses a stratified measurement approach, with a soil parameter measurement point installed every 10 cm in the subsurface soil to monitor the soil parameters within the corresponding range.
Vertically dig a pit with a diameter greater than 20 cm, insert the sensor steel probes horizontally into the pit wall at the designated depth, refill and compact the pit, and after stabilizing for a period of time, continuous measurement and recording can be carried out for several days, months, or even longer.
Wide voltage power supply input: 5–30V. When wiring the 485 signal line, make sure that the A/B lines are not reversed, and that device addresses on the same bus do not conflict.
Advantages
| Power supply | DC 5-30V | |
| Maximum power consumption | 1.1W (12V DC power supply) | |
| Working temperature | -40℃~+60℃ | |
| Core chip temperature resistance | 85℃ | |
| Soil conductivity | Range | 0-20000μS/cm |
| Resolution | 10μS/cm | |
| Accuracy | 0-10000μS/cm is ±3%FS, 10000-20000μS/cm is ±5%FS | |
| Soil moisture | Range | 0-100% |
| Resolution | 0.1% |
|
| Accuracy | 0-50% is ±2%, @ (brown soil, 30%, 25℃) 50-100% is ±3%, @ (brown soil, 60%, 25℃) | |
| Soil temperature | Range | -40℃~80℃ |
| Resolution | 0.1℃ | |
| Accuracy | ±0.5℃ (25℃) | |
| Conductivity temperature compensation | Built-in temperature compensation sensor, compensation range 0-50℃ | |
| Protection grade | IP68 | |
| Probe material | Anti-corrosion special electrode | |
| Sealing material | Black flame-retardant epoxy resin | |
| Default cable length | 1 meter, the cable length can be customized. | |
| Output signal | RS485 (Modbus protocol) | |
Model
| RS- | Detection | |||
| 3S | Detect 3 layers of soil moisture | |||
| 5S | Detect 5 layers of soil moisture | |||
| 3W3S | Detect 3 layers of soil temperature and moisture | |||
| 5W5S | Detect 5 layers of soil temperature and moisture | |||
| 3EC3S | Detect 3 layers of soil conductivity and moisture | |||
| 5EC5S | Detect 5 layers of soil conductivity and moisture | |||
| 3EC3W3S | Detect 3 layers of soil conductivity, temperature and moisture | |||
| 5EC5W5S | Detect 5 layers of soil conductivity, temperature and moisture | |||
| N01- | Standard Modbus-RTU485 communication | |||
| TR-5 | Multi-soil layer soil parameter monitor | |||
