Industrial water ph sensor
The industrial water PH sensor (RS-PH-*-2-*-EX) is a device for measuring the pH value (hydrogen ion concentration index, pH) of a solution. With automatic temperature compensation function. It is suitable for industrial sewage, domestic sewage, agriculture, aquaculture, and other scenarios in a non-corrosive weak acid and weak alkali environment. The output signal has rs485, 4-20ma, 0-5V, 0-10V.
- Model: RS-PH-*-2-*-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: USD 77.60
About industrial ph sensor

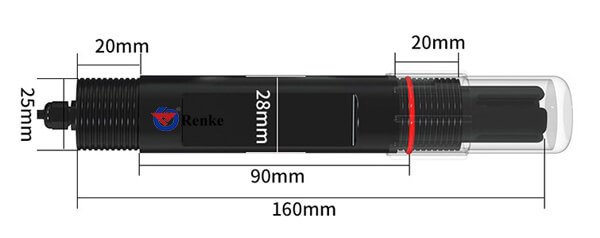

RS-PH-*-2-*-EX industrial pH sensor adopts conventional composite electrode, which is suitable for the measurement of conventional sewage, tap water, environmental sewage, domestic sewage and other solutions. The pH measure range is between 0~14pH, and the resolution is 0.01pH. The adaptation temperature of the electrode is 0-80℃. This water pH sensor consists of two parts: a data collector and an electrode probe. The ph electrode probe has four lengths of 5m, 10m, 15m, and 20m. The housing of the data collector is IP65 protection grade, which can be used in outdoor rain and snow environment.
When it detects that the PH concentration exceeds the preset alarm value, it can provide multiple alarm methods such as interface alarm, sound and light alarm, SMS alarm, telephone alarm, email alarm, etc., to remind managers to troubleshoot the cause of excessive PH value in time, and record the event for information Call and analyze.
Power supply: DC 10~30V
Power consumption: 0.6W (rs485), 1.2W (4~20mA/0~5V/0~10V)
Output signal: RS485/4~20mA/0~5V/0~10V
pH measurement range: 0~14.00pH
Resolution: 0.01pH
pH measurement error: ±0.15pH
Repeatability error: ±0.02pH
Temperature measurement range: 0~80℃
Resolution: 0.1°C (set temperature for manual temperature compensation, default 25°C)
Temperature measurement error: ±0.5℃
Working environment: 0-60℃, relative humidity <85%
Applicable temperature of electrode: 0~80℃
Electrode wire length: default 5m (10m, 15m, 20m can be customized)
Electrode life cycle: 1 year
The output signal types of this industrial water PH meter are divided into RS485 and analog. The data collected by the RS485 industrial PH sensor can be connected to the environmental monitoring host through RS485 wiring, and then uploaded to the environmental monitoring cloud platform through the GPRS/4G signal output. Real-time monitoring is realized through the environmental monitoring cloud platform to ensure the safe discharge of industrial wastewater. In addition, the environmental monitoring cloud platform also has functions such as historical data analysis, viewing, exporting, and remote setting of data parameters, and supports multiple login methods on the computer terminal, mobile phone APP, and WeChat official account.
pH electrode types and parameters
pH electrode use
There are different types of pH electrodes for different measurement environments. The six most commonly used electrode types are listed on the right.
pH sensor widely use in:
Industrial Waste Water Applications
Sanitation Chemicals – Chlorine, Bleach, Caustic, Acids, Bases
Pharmaceutical Waste Water
Sewer Water
Cooling Towers
Commercial Swimming Pools
Aquaculture industry
Aquarium measurement ph
Parameters of pH Electrodes
Electrode Type | PH range | Temperature(℃) | Pressure resistance(Mpa) | Internal resistance MΩ (25℃) | Zero potential | Theoretical percent slope(%) |
Conventional pH electrode | 0-14 | 0-80 | 0.6 | ≤250 | 7±0.2 | ≥95 |
Desulfurization pH electrode | 0-14 | 0-60 | 0.6 | ≤250 | 7±0.2 | ≥95 |
Tetrafluoro pH electrode | 0-14 | 0-80 | 0.6 | ≤250 | 7±0.2 | ≥95 |
Electroplating pH electrodes | 0-14 | 0-80 | 0.6 | ≤250 | 7±0.2 | ≥95 |
Glass pH electrode | 0-14 | 0-80 | 0.6 | ≤250 | 7±0.2 | ≥95 |
Antimony pH electrode | 0-14 | 0-80 | 0.6 | / | 7±0.2 | ≥95 |
Features
High performance: high accuracy, fast response, good repeatability
Universal protocol: MODBUS RS-485 or 4~20mA current
Wide-range power supply: 10V ~ 30VDC
Robustness: suitable to be immersed in water for a long time
Maintainance-Free: advanced junction design, no clogging
Durable: anti-corrosion, automatic temperature compensation
User-friendly: Easy to install and integrate
Installation
1.Submerged type: the lead of the pH electrode is threaded out of the stainless steel tube, and the 3/4 thread on the top of the pH electrode is connected to the stainless steel 3/4 thread with a raw material tape. Make sure that no water enters the top of the electrode and the electrode wire.
2. Sidewall: The manufacturer provides a 316L all-stainless steel sheath with a bevel, and the pH electrode can be screwed into the sheath.
3. Duct mount: Connect to the pipe through the 3/4 thread of the pH electrode.
FAQs about pH sensors
What is pH sensor?
The pH sensor is a key instrument for determining pH levels and is widely utilized in water quality assessment. It measures the acidity or alkalinity of water and various solutions. When applied correctly, pH sensors help maintain the safety and quality of both products and operational processes, especially in wastewater treatment and industrial manufacturing environments.
How to maintain the pH sensor?
If you want the pH sensor to keep in good condition, you must maintain the pH electrode regularly. Without proper maintenance, some common problems that may affect the electrode include: oily coating on the electrode, blockage or fouling of the reference contact, malfunction or breakage of the PH bulb, and short electrode life due to reference poisoning.
If the electrodes are usually coated with oil and other substances, consider using a sensor that includes a non-porous reference junction. The use of automated systems for cleaning electrodes can further reduce your maintenance needs. If the reference junction is often clogged or fouled, a non-porous electrode can also be used as a solution to this problem. If your pH bulb breaks when it comes in contact with sewage, you can use a bulb guard to protect it. As for the problem of reference poisoning, the use of non-porous electrodes can avoid these problems.
How to clean the pH sensor?
It only takes a few simple steps to clean your electrode to properly maintain and clean the pH electrode. Whenever handling pH electrodes, it is important to wear safety glasses and gloves. When the electrodes are not in use, they should always be kept in a liquid solution. If the electrode dries out, it can no longer be used. Most electrodes can only be purchased in saline solution, and you can continue to use them in the future.
In order to clean the electrode, you should put it in a solution consisting of 95% water and 5% hydrochloric acid. When the electrode is placed in this solution, most of the coating will dissolve. The sensor should be soaked for 5-10 minutes and then rinsed off. If the coating around the sensor is particularly heavy, the above steps should be repeated several times. Be sure to wipe the sensor with a soft cloth, as any abrasive cloth or brush will damage the electrode.
Why are different types of pH sensors important?
With modern water pollution becoming more and more serious today, it is urgent to protect the environment and protect water resources. Countries all over the world are paying attention to this issue. In some countries, industry is the backbone of the national economy. They know that it is not good to exchange economic development at the cost of the environment, but they have to do so. Therefore, water pollution is already a headache for the whole world. Sewage treatment equipment was developed under this background. Sewage treatment equipment can effectively treat domestic sewage and industrial waste water in urban areas to prevent sewage and pollutants from directly flowing into waters. PH sensor is an important part of sewage treatment equipment.
The pH value is one of the most commonly used water quality testing indicators, and the pH value of natural water is mostly in the range of 6-9. The pH value of drinking water should be between 6.5 and 8.5. The pH value of some industrial water should be guaranteed to be between 7.0 and 8.5, otherwise it will have a corrosive effect on metal equipment and pipelines. pH value and acidity, alkalinity are both different and connected. The pH value indicates the strength of the acidity and alkalinity of the water, and the acidity or alkalinity is the content of acid or alkali substances in the water. The change of pH in water quality indicates the degree of water pollution.
If the water pH is too high or too low, the aquatic organisms in it will die. PH value also affects the dissolved oxygen and toxicity of chemicals and heavy metals in the water. Most aquatic organisms like the pH range between 6.5 and 9.0, but some can live in water bodies with a pH beyond this range.
Therefore, whether it is industrial production, aquaculture, sewage treatment or agricultural production, a ph sensor is needed to detect the ph value in the liquid, which requires us to choose the appropriate ph sensor.
What does a pH sensor consist of?
A typical pH sensor (usually a glass electrode) consists of:
Measuring electrode: Contains a special pH-sensitive glass that reacts with hydrogen ions in the solution.
Reference electrode: Provides a stable voltage for comparison.
Internal buffer solution: Usually a pH 7 solution sealed inside the sensor.
Temperature sensor (in modern sensors): Helps adjust readings because pH can vary with temperature.
How does pH sensor work?
When the sensor is placed in a liquid:
The hydrogen ions in the solution interact with the glass membrane.
This interaction generates a small voltage (electric potential) that changes depending on the pH of the solution.
The sensor compares this voltage to the reference electrode.
The resulting voltage difference is converted into a pH value by the transmitter or pH meter.
What are the output modes of our pH sensor?
Our pH sensors have two output modes: RS485 and analog.
