Multi Channel Temperature Humidity Data Logger(-C3)
The RS-WS-WIFI5-C3-Y*-*-EX series is a multi channel temperature and humidity data logger featuring WiFi wireless data transmission. It can collect up to four channels of temperature and humidity data and upload them to our free environmental cloud platform via a WiFi network, supporting both 2.4 GHz and 5 GHz dual band WiFi.
- Model: RS-WS-WIFI5-C3-Y*-*-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $68.8~$94
About - Multi Channel Temperature and Humidity Data Logger
The RS-WS-WIFI5-C3-Y*-*-EX series temperature and humidity data logger fully utilizes existing on site WiFi networks for data acquisition and transmission, enabling centralized monitoring of temperature and humidity data. This significantly reduces wiring and installation workload, improving installation efficiency while lowering maintenance costs. The -3C series multi channel temperature and humidity data logger is available in several versions.

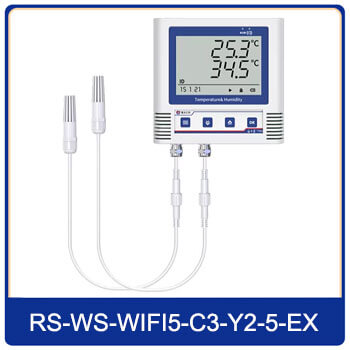

- Probe type: PVC probes
- Number of probes: two
- Range:-40℃~+80℃, 0%RH~100%RH
- Accuracy:±0.5℃(25℃),±3%RH(60%RH,25℃)

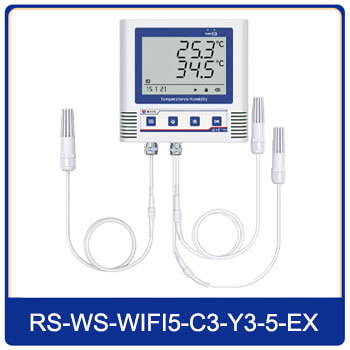

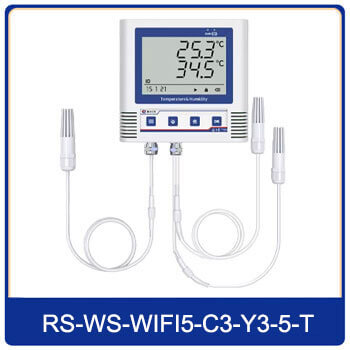

- Probe type: PVC probes
- Number of probes: three
- Range:-40℃~+80℃, 0%RH~100%RH
- Accuracy:±0.5℃(25℃),±3%RH(60%RH,25℃)

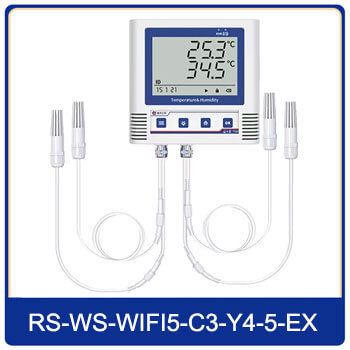

- Probe type: PVC probes
- Number of probes: four
- Range:-40℃~+80℃, 0%RH~100%RH
- Accuracy:±0.5℃(25℃),±3%RH(60%RH,25℃)

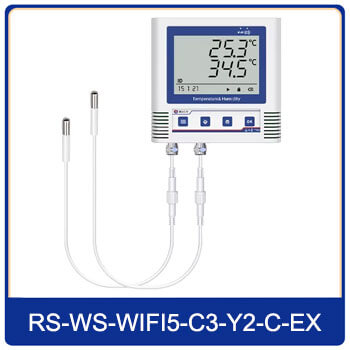

- Probe type: stainless steel probes
- Number of probes: two
- Range:-40℃~+80℃, 0%RH~100%RH
- Accuracy:±0.5℃(25℃),±3%RH(60%RH,25℃)

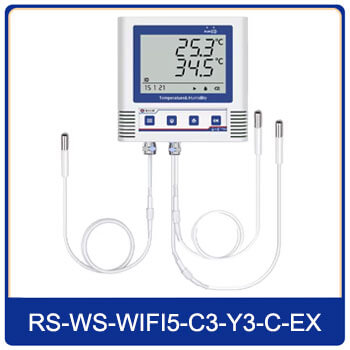

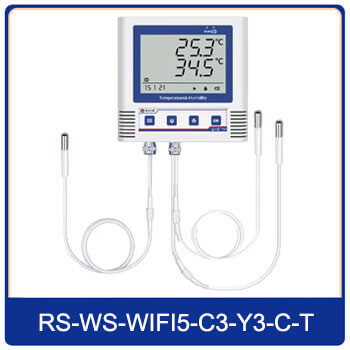

- Probe type: stainless steel probes
- Number of probes: three
- Range:-40℃~+80℃, 0%RH~100%RH
- Accuracy:±0.5℃(25℃),±3%RH(60%RH,25℃)
- Probe type: stainless steel probes
- Number of probes: four
- Range:-40℃~+80℃, 0%RH~100%RH
- Accuracy:±0.5℃(25℃),±3%RH(60%RH,25℃)

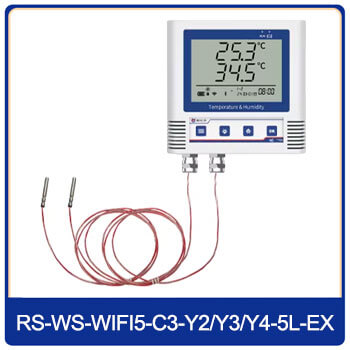

- Probe type: Ultra-low temperature probe
- Number of probes: two/three/four
- Range:-100℃~+200℃
- Accuracy:±0.3℃ (@25℃ 60%RH)

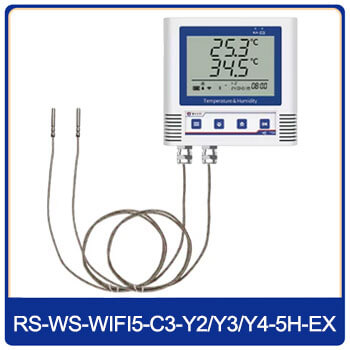

- Probe type: Ultra-high temperature probe
- Number of probes: two/three/four
- Range:0℃~+300℃
- Accuracy:±0.3℃ (@25℃ 60%RH)
- Probe type: Ultra-wide temperature probe
- Number of probes: two/three/four
- Range:0℃~+300℃
- Accuracy:±0.3℃ (@25℃ 60%RH)
Advantages

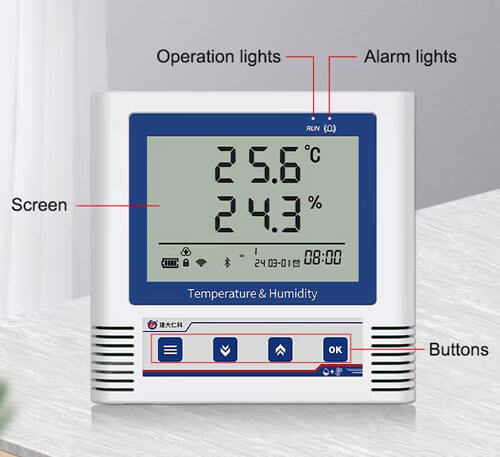

Our C3 series multi channel temperature and humidity data logger features a large LCD display that cyclically shows multi channel temperature and humidity data for convenient on site viewing. It supports dual upper and lower limit control with freely configurable thresholds, multi parameter calibration, and an integrated alarm module with a buzzer for over limit alerts. The temperature and humidity data logger includes a built in storage module that enables local data storage during network outages and automatic data upload once the connection is restored, ensuring no data loss.
This multi channel temperature and humidity data logger features dustproof buttons, allowing on-site manual parameter configuration. The measurement unit uses original high quality temperature and humidity sensors with high accuracy and strong anti interference capability, ensuring excellent measurement performance. This multi channel temperature and humidity data logger is widely used in greenhouses, laboratories, livestock farms, agricultural facilities, offices, and warehouses, helping users achieve more refined and scientific temperature and humidity management.
Parameters
| Power supply | DC 5V or built-in battery |
|---|---|
| Average power consumption | 11.9mW (uploaded every 10 minutes) |
| Communication Interface | Standard Wi-Fi (2.4GHz/5GHz) |
| Wifi communication parameters | Supports 802.11a/b/g/n wireless standards |
| Wifi encryption performance | Supports WPA/WPA2 security modes |
| Circuit operating environment | -20℃~+60℃, 0%RH~95%RH (non-condensing) |
| Probe measurement range | -40℃~+80℃, 0%RH~100%RH |
| Accuracy | ±0.5℃ (25℃), ±3%RH (60%RH, 25℃) |
| Data upload interval | Default 10min (without external power supply) |
| Number of probes | 2~4 channels (default 4 channels) |
| Battery life | 45 days (upload every 10 minutes) |
| Data refresh time | 10 seconds |
| Internal storage | Configurable recording period, 65,000 records |
Features
- Supports Dynamic Domain Name System (DDNS).
- Utilizes WiFi wireless transmission for easy data upload through existing on site networks.
- Renke provides a free data monitoring and management platform for real time data access.
- Equipped with a low power consumption large LCD screen for real time on site viewing of temperature and humidity data.
- Built in buzzer enables high and low temperature alarm functions.
- Integrated high capacity lithium battery, supporting both battery powered operation and external power supply.
- Built in internal storage with a default capacity of 65,000 records (optional 150,000 or 550,000 record storage available).
