Ultrasonic Anemometer

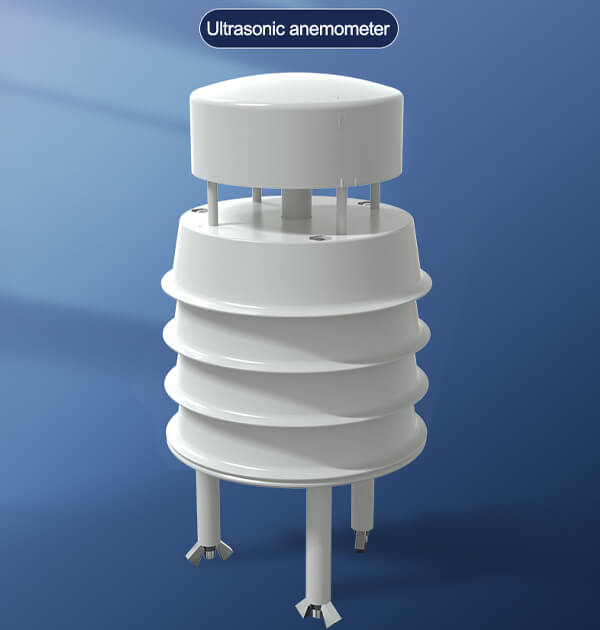

It is a small ultrasonic anemometer for outdoor measurement of wind speed and direction. It has no movable parts, compact design, high protection level, easy to install, and can be used in harsh environments. This ultrasonic anemometer price is very cheap and meets the needs of most users.
- Model: RS-CFSFX-*-3-EX
- MOQ: 1 PCS
- Delivery date: within 24 hours
- Price: $73.4
About - Ultrasonic Anemometer
Ultrasonic wind speed and direction sensors are currently widely used in power safety monitoring, bridges and tunnels, marine ships, urban environmental monitoring, road safety, and other fields.
Description
RS-CFSFX-*-3-EX ultrasonic anemometer is a measuring instrument that uses ultrasonic waves to propagate in the air to measure wind speed and direction. Its internal use low-power chips, power consumption is only 0.12W. It is especially suitable for solar or battery-powered environments with relatively high power consumption. Thanks to new technology and new technology, the structure is more compact and compact. Optional temperature and air pressure modules are also provided. The shell is made of high-strength ABS material, which is convenient for users to use in different environments. We provide a free cloud platform for customers to view data.
Parameters
Power supply | 10-30V DC | |
Power consumption | 0.12W(RS485), 1.2W(Analog) | |
Range | 0~40m/s, 0~360° | |
Accuracy | ±0.5+2%FS (60%RH, 25℃), ±3° (60%RH, 25℃) | |
Resolution | 0.01 m/s, 1° | |
Working environment | -40~80℃, 0~95%RH (non-condensing) | |
Wind resistance | 75 m/s | |
Response time | 1s | |
Protection level | IP65 | |
Output signal | RS485/4-20mA/0-5V/0-10V | |
Starting wind speed | 0.5m/s |
Advantages - Ultrasonic Anemometer
The shell of this small ultrasonic anemometer is made of high-quality ABS material, which can effectively resist rain, snow, and ultraviolet rays. The four ultrasonic terminals adopt an upside-down design to avoid measurement errors caused by rain, snow, or sand accumulation.
This ultrasonic wind sensor can be equipped with a built-in electronic compass and a device with a built-in electronic compass. There is no longer a position requirement during installation, just ensure that it is installed horizontally. Therefore, it can be used in mobile occasions such as marine ships, automobile transportation, etc., and there is no direct requirement during installation.
The ultrasonic anemometer has a compact design, the entire structure does not have any parts that need to be moved, and there is no mechanical wear during use, so it has a long service life. Once installed, there is no need for maintenance and on-site calibration during use, which saves worry and effort.
The wind speed and direction of this device are measured by the ultrasonic principle, so there is no angle limit, 360° Omni-directional, and accurate wind speed and wind direction data can be obtained at the same time.
Renke is a professional weather equipment manufacturer with 15 years of production experience and a large and complete production line. Factory-direct sales, in stock. The price of the same type of small ultrasonic anemometer on the market is generally about $130, while the price of the Renke ultrasonic anemometer is only $73.4, which can save you at least 43% of the cost.
We have professional technicians to solve various after-sales problems for you, such as wiring problems, installation problems, reading problems, etc. Ultrasonic anemometers provide a one-year warranty. In addition, we have a large inventory and fast delivery. Guaranteed to ship within 24 hours.
FAQ
More information about ultrasonic anemometers
Ultrasound is a sound wave with a frequency higher than 20000 Hz. It is named after its lower frequency limit is greater than the upper limit of human hearing. It has good directivity, strong reflection ability, and is easy to obtain concentrated sound energy.
Compared with the mechanical wind speed and direction sensor, the ultrasonic anemometer has higher measurement accuracy and more stable performance. The structure of the measurement terminal is relatively simple. In many applications, it replaces traditional mechanical wind speed and direction sensors.
Ultrasonic wind measurement is an application of ultrasonic detection technology in gas medium. It uses the influence of air flow on the propagation speed of ultrasonic waves in the air to measure wind speed. Compared with conventional cup or rotor anemometers, the biggest feature of this measurement method is that the entire wind measurement system does not have any mechanical rotating parts, and it belongs to non-inertial measurement, so it can accurately measure the high-frequency components of gust pulsation in natural wind.
The ultrasonic wind speed and direction transmitter uses four ultrasonic probes to send and receive ultrasonic waves in a two-dimensional plane in a cycle, and measures wind speed and direction based on the principle that ultrasonic waves are affected by wind speed and increase or decrease.
Our ultrasonic anemometers have been calibrated before leaving the factory, and they can be used directly without the customer’s secondary calibration.
To protect the patented technical parameters, please contact us for a manual.
